Power Packs
HLK-90000 series Power Packs
The HLK-90000 Power pack is a three phase powered unit which can be supplied for operation on either 415 (Delta) or 660 (Star) Volts. The motor is fitted in an oil-filled, pressure compensated housing, which is separate to the pump and reservoir. An optional electrical pressure sensor can be fitted with a separate connector for remote pressure monitoring. Please contact us for further information.
Power Pack - HLK-90200
This compact device is housed in a 100 mm diameter pod. It incorporates a universal 400 watt 240v (AC/DC) motor, which drives a gear pump which delivers 140 bar at 0.5 Litres per minute and is designed to operate all HLK Manipulator systems. The standard system is designed to operate at 1000mtrs. 3000mtr systems are also available. Weight 2.5Kg in water.

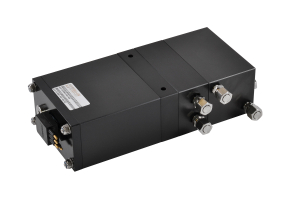

Power Pack - HLK-91000
The HLK-91000 Power Pack has been designed to fit on the new range of small ROV's. It can deliver 0.3Litres per minute at 210 BAR for an electrical input of 24 or 48 Volts DC at 300 Watts. The Power Pack is only 63mm high; it has a footprint of 223 x 110mm and weights 2.5Kg in water.

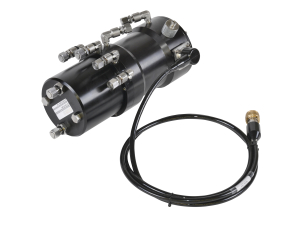

Power Pack - HLK-90130
The HLK-90130 Power pack is a three phase powered unit which can be supplied for operation on either 440 or 660 Volts. The motor is fitted within an oil-filled, pressure compensated housing, which is separate to the pump and reservoir. The pump has an oil filter fitted to prevent contamination from being circulated through the hydraulic system.

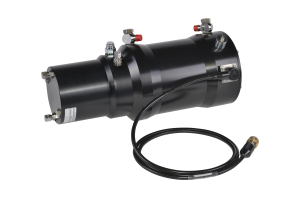

Power Pack - HLK-90150
The HLK-90150 Power Pack is a 3-phase 4.5KW hydraulic power pack. It can be supplied with various voltage motors, typically 440 or 660V. It produces 15 litres/min at 140 BAR.
The motor housing is compensated separately from the hydraulic pump to lessen the possibility of water contamination..jpg)
Power Pack - HLK-91100
The HLK 91100 Power Pack is a low voltage DC operated, medium flow power pack which incorporates a pressure regulator in the manifold. The manifold is used to mount the gear pump and hydraulic reservoir, high pressure shaft seal and electric motor/gear drive set.
