Pan & Tilts
Mini Pan & Tilt - HLK-2100
The HLK-2100 Mini Pan & Tilt is a very light weight, compact unit designed to satisfy the need for miniature cameras used on Tooling Skids, ROV's and Tether Management Systems. Constructed from 316 SS and HE 30 Aluminium. Pan 180° Tilt 90° . Weight 1.3 Kg in water.

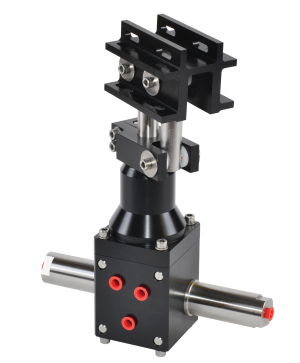

Pan & Tilt - HLK-2150
This unit has become the industry standard for many hydraulic ROV's in service today. It has the smallest arc of pan of any work class unit on the market. Constructed from 316 SS and HE 30 Aluminium, incorporating a hydraulic slip ring assembly, enables all the plumbing to be kept rigid eliminating moving hoses. Pan 360° Tilt 120° . Weight 3.3 Kg in water
Camera Rotator - HLK-2200
This is a derivative of the HLK-2150 Pan & Tilt and can be used as a rotational platform for cameras in the horizontal or vertical positions. As with the Pan & Tilt it incorporates the same pan sub-assembly, with a rugged rotate shaft. It can also incorporate a high-pressure water line through the slip ring assembly for use in cleaning heads. Weight 2.1 Kg in water.
Heavy Duty Rotary Actuator - HLK-2260
The HLK-2260 Heavy Duty Rotary Actuator is designed to rotate manipulator arms to enable access for inspection and positioning tasks. The double rack and pinion ensures a very robust arrangement, which has the minimum of backlash. Various mounting plates can be fitted to suit different mounting styles. Weight in water is 5.4 Kg.
Centre Return Rotary Actuator - HLK-2280
The HLK 2280 Centre Return Rotary Actuator has two internally fitted heavy-duty springs, which return the rotate shaft to its centre position. Its small compact design, make this ideal for use as a remote valve actuator. Overall size is 100 x 90 x 65 mm and weight in water is 1.4 Kg.
Compact Camera Rotator - HLK-2290
The HLK-2290 Compact Camera Rotator has been designed for use with the new, modern, lightweight cameras. It is only 75 x 70 x 230 mm overall with a rotate of 360°. Constructed from plastic and stainless steel, it only weighs 1.5 Kg in water.
Inspection Rotary Actuator - HLK-22100
The HLK 22100 rotary actuator is designed to rotate manipulator arms to enable a rotating access for inspection and positioning tasks.
The rotate function is achieved using a hydraulic motor driven worm and wheel.
