Hydraulic Manipulators
4 Function Manipulator - Utility Class
HLK-MB4
The HLK-MB4 Manipulator arm is a utility class arm ideally suited for installation on many of the smaller ROV's. This arm is supplied as standard with the Gauntlet Plus System. It utilises the HLK-2020 Continuous Rotate Jaw Actuator and HLK-1300 Hydraulic Cylinders.
4 Function Manipulator - Heavy Duty
HLK- RHD4
The HLK-RHD4 Manipulator Arm is a four function, rugged heavy-duty arm. It is designed to act as a grabber and can be fitted with a set of larger jaws to grip around up to 300mm diameters. It is intended for complimentary use with other 5 or 6 function arms. It is capable of lifting 90Kg at full reach.
4 Function Complete System Kit - HLK-Gauntlet Plus System
The Gauntlet Plus is an upgraded version of the Gauntlet System, comprising of a HLK-MB-4 Manipulator, Valve Pack, Power Pack and full telemetry control system. The arm has a high torque continuous rotate jaw fitted (HLK-2020). The system can be easily expanded for a dual arm configuration and provision of a disc cutter.
5 Function Manipulator - Mini

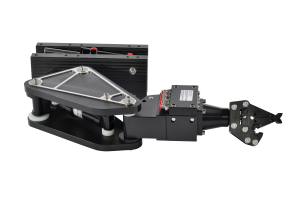

HLK-43000
The HLK-43000 Mini Gauntlet Arm is a five function lightweight arm, designed for small ROV's. The stainless steel jaws incorporate a 180°; jaw rotate with a 1 / 4 " diameter rope cutter. This arm has been designed to work with Hydro-Lek's HLK-70150 5 Way Valve Pack and HLK-91000 DC Power Pack.
5 Function Manipulator - Medium Duty
HLK-EH5
One of the most popular medium duty arms. The HLK-EH5 is a compact stowable arm, which has a reach of almost 800mm. Constructed from 316 SS and HE 30 Aluminium. It incorporates the HLK-2010 Jaw Actuator and three HLK-1300 Cylinders. ROV's fitted include Argus, Recon, Surveyor, Panther and Sperre.
5 Function Manipulator - Heavy Duty
HLK-HD5
A rugged work arm for the smaller ROV. Constructed from 316 SS, HE30 Aluminium and High Density Polyethylene. It incorporates the HLK-2020 Continuous Jaw Rotate Assembly and three HLK-1300 Cylinders. The arm is capable of lifting over 50Kg at a full reach of 800mm. ROV's fitted include MAX ROV and Panther.
5 Function Manipulator - Heavy Duty
HLK-RHD5
This arm has similar geometry to the HLK-HD5 Manipulator arm but with increased lifting capacity. It incorporates 35mm bore cylinders (HLK-13020) and capable of lifting 90Kg at 175 BAR hydraulic pressure. It also has the HLK-2020 continuous rotate jaw fitted.
6 Function Manipulator - Heavy Duty
HLK-HD6W
The HLK-HD6W Manipulator arm is based on the HLK-HD5, but with an HLK-22100 Rotary Actuator fitted at the shoulder joint, which is mountable in 4 separate positions to allow port & starboard mounting as well as offering additional up or down functions.
6 Function Manipulator - Light Duty - Long Reach
HLK-CRA6
A long reach, light weight arm being only 14Kg in water and reaches over 1400mm and can lift 30Kg. Designed to collect sea bed samples it can also be used as an extended camera or lighting platform. It incorporates the HLK-2010 Jaw Assembly and four HLK-1300 Cylinders. It is constructed from 316 SS, HE 30 Aluminium and High Density Polyethylene. Vehicles fitted include Newtsub.
7 Function Work Class Manipulator
HLK-40500R
The HLK 40500 R 7 Function Manipulator has been developed to meet the requirements of the new medium range of work class ROVs.
The simplicity of the design and ease of use make it a cost effective choice for manipulator operations. The ability to regulate speed on the rate control system enables greater precision over movement.
5 Function Manipulator
HLK-40400
The HLK 40400 is a 'back hoe' style 5 function H.D. Manipulator designed to complement the modern range of 7 function arms found on work class ROVs.
It features a double upper arm linkage which ensures compact storage and enables an upper arm range which can work for below the ROV to points close to the standard badge bar.
Manipulator Camera Conversion - HLK-2010C
The HLK-2010 can readily be converted to a camera platform for fitting to any HLK manipulator. This conversion can be carried out on site without any change of hydraulic hoses. As with the jaw assemblies, the standard finish position of the camera pan platform is adjustable on the clamp mount. Weight 3Kg in water./p>
Camera Boom - HLK-EH5C
Based on the HLK-EH5 arm this has the Jaw Assembly Conversion HLK-2010C fitted. The booms, used in pairs, can be mounted upside down to enable pipe- lines of up to 30" diameter to be surveyed with full camera control, and the ability to stow away for vehicle recovery. The same standard control system can be used as with the manipulator arm control.
Camera Boom - HLK-4600
The HLK-4600 is a rugged Camera Boom Arm designed to inspect 36" diameter pipeline. Constructed from predominantly plastic and stainless steel, these arms can be operated from Hydro-Lek's standard Hydraulic system and can be fitted to any ROV.
Camera Boom
HLK-4600PT
The HLK-4600 is a rugged Camera Boom Arm incorporating HLK 2150 pan & tilt designed to inspect 36" diameter pipeline. Constructed from predominantly plastic and stainless steel, these arms can be operated from Hydro-Lek's standard Hydraulic system and can be fitted to any ROV.
Camera Boom with Mini Pan & Tilt
HLK-46000
The HLK-46000 is a compact Camera Boom, lighter in weight than the HLK 4600 and suitable for mounting on smaller ROVs. The main limb comprises two sections operated from one hydraulic cylinder and is capable of measuring around one metre of pipeline.
6 Function Manipulator Arm
HLK-47000
The HLK-47000 is a 6 function manipulator designed with the intention of collection and recovery of delicate materials and live sea life specimens. The collection is achieved using the HLK-24000, a picking device consisting of a radial arrangement of 10 finger pairs. The system consists of a 90° slew of a parallelogram arm for vertical lift, attached to the end of this is a dexterous arm providing a 180° rotate and 2 additional bend functions.
The HLK-47000 arm with HLK-24000 finger type picker has been designed with a degree of interchangeable tooling in mind, allowing task specific tools of similar dimensions to be fitted.
